VC4 Charger - Xtar Light

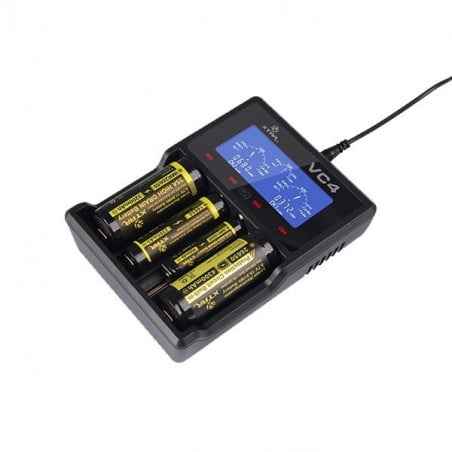

Xtar VC4 charger

The Xtar VC4 charger will allow you to charge up to 4 batteries simultaneously. The slots located at the ends of the charger deliver a charge of 1 A while the slots located in the center deliver 0.5 A. Slots 1 and 4 are ideal to charge your battery faster if you are short of time for example.

The LCD display is very convenient to see the charge level of each battery as well as its characteristics (charge current, charge voltage, battery capacity, channels and battery type). In addition, the central button allows you to quickly switch information or turn off the display by pressing the button for 1.5 seconds.

With which batteries can I use the VC4 battery charger?

The Xtar VC4 battery charger is compatible with the following batteries (not included) :

Ni-MH/Ni-CD ：A / AA / AAA / AAAA / C /SC/ D

Li-ion/IMR/INR/ICR: 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 21700, 22650, 25500, 26650

Technical specifications of the Xtar VC4 charger

- Four slots

- Compatible with Li-ion, NiMH, NiCAD batteries

- Max charge current of 3A (0.5A for slots 2 and 3 and 1A for slots 1 and 4)

- Constant current at 0.5 A : 500 mAh

- Constant current at 1 A: 1000 mAh

- Compatible formats: 10440 to 26650

- Charge indicator via LCD screen

- Characteristics indicator via LCD screen

- USB plug (AC adapter not included)

- Reverse polarity, overheating and short circuit protection

- Dimensions: 149 mm x 115 mm x 35 mm

- Recommended power source: 5V/2.1A

Here is what is delivered:

- 1 Xtar VC4 charger

- 1 USB cable

- 1 carrying case

- 1 user manual
